Enhanced Channel Access

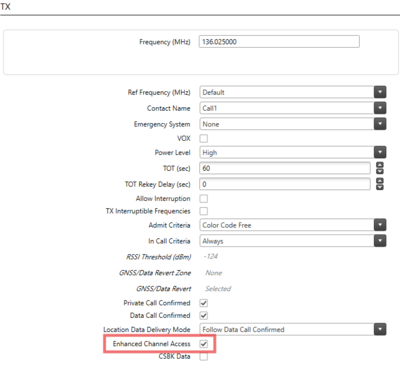

TX Parameters of a Conventional Channel with Enhanced Channel Access circled red. Note the TX Admit Criteria setting!

Enhanced Channel Access (ECA) is a Motorola Solutions proprietary feature that improves the reliability of transmissions by minimizing over the air collisions when two or more radios attempt to initiate a call simultaneously.

It is a channel access procedure where a call-initiating radio transmits a channel access request and then listens on the channel to determine the request's status. The radio proceeds with the call transmission only after it obtains access to the channel. ECA provides the ability to reserve a channel for one of the call-initiating radios, granting exclusive access for a short duration.

Enhanced Channel Access works by performing a high-speed handshake with the repeater, which takes approximately 120 milliseconds to complete. This handshake helps to reduce the number of collisions between radios transmitting data.

To enable it, the Admit Criteria setting in the channel or personality needs to be set to either Channel Free or Color Code Free and Enhanced Channel Access must be ticked. If the former is set to Always, the procedure is not applied.

Data and CSBK calls are always considered polite transmissions, regardless of the configured Admit Criteria, so ECA is applied during their transmission if enabled. However, enabling ECA can slightly increase system/voice access times for voice calls and latency for data/CSBK calls. It also minimizes the impact of voice transmissions colliding with Over-The-Air Programming (OTAP) data, making it advisable to enable ECA on all radios in the system if OTAP is used.

IP Site Connect

Enhanced Channel Access is available in Single Site Conventional mode IP Site Connect mode.

A repeater supports ECA on conventional digital channels and IPSC Local Area Channels (LACs)/Wide Area Channels (WACs) when enabled in the radio. However, the repeater does not support ECA on Enhanced GPS channels.

Extended Range Direct Mode

ECA is also supported in Extended Range Direct Mode to minimize transmission collisions. For phone calls across all system configurations, ECA is enabled by default to achieve optimal performance. It is recommended to enable ECA on all radios accessing the channel for maximum benefit. For correct and reliable operation, it is strongly recommended to upgrade the repeater firmware version to R01.08.00 or later before initiating calls with ECA enabled on the radio. If ECA is enabled on a Capacity Plus Data List, members of the list cannot have Enhanced GNSS activated, as this configuration would be invalid.

ECA is only available in this configuration if Compatibility Mode is disabled.

MOTOTRBO Link (Repeater Backhaul)

Enhanced Channel Access is however not supported on MOTOTRBO Link (repeater backhaul) systems. Repeaters also do not support Enhanced Channel Access on Dynamic Mixed Mode channels or Enhanced GPS (scheduled) Revert channels - the latter has its own means of avoiding data collisions.

Single Site and Multisite Capacity Plus

Configuring Enhanced Channel Access is not required in Capacity Plus Single Site or Capacity Plus Multi Site systems because their call setup processes implicitly include ECA. In these modes, ECA is built into the Capacity Plus Trunked Channels and is not user-configurable. Also, for Capacity Plus Data Revert Channels, ECA is supported by the repeater when enabled in the radio, but not on Enhanced GPS channels.

When the Enhanced GPS feature is enabled on a channel, ECA is disabled and not required because each radio transmits during an assigned time window.

Capacity Max

With Capacity Max, Enhanced Channel Access is used to manage floor control for transmissions within a call.

See Also

• TX Admit Criteria
